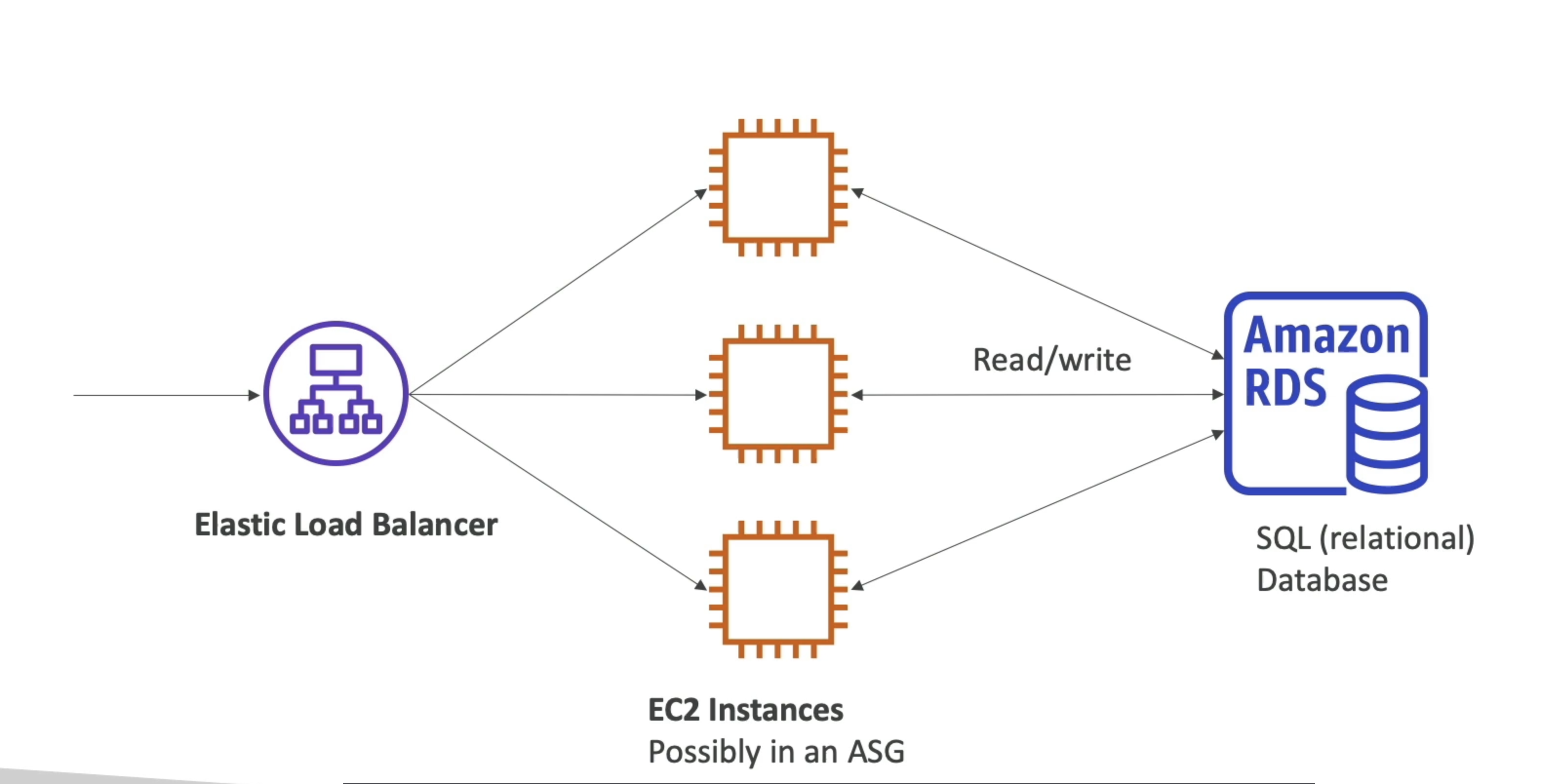

Introduction

• RDS stands for Relational Database Service
• It's a managed DB service for DB use SQL as a query language.
• It allows you to create databases in the cloud that are managed by AWS
• Postgres
• MySQL
• MariaDB
• Oracle
• Microsoft SQL Server
• IBM DB2
• Aurora (AWS Proprietary database)

Benefits

• RDS is a managed service:
  • Automated provisioning, OS patching
  • Continuous backups and restore to specific timestamp (Point in Time Restore)!
  • Monitoring dashboards
  • Read replicas for improved read performance
  • Multi AZ setup for DR (Disaster Recovery)
  • Maintenance windows for upgrades
  • Scaling capability (vertical and horizontal)
  • Storage backed by EBS
• BUT you can't SSH into your instances

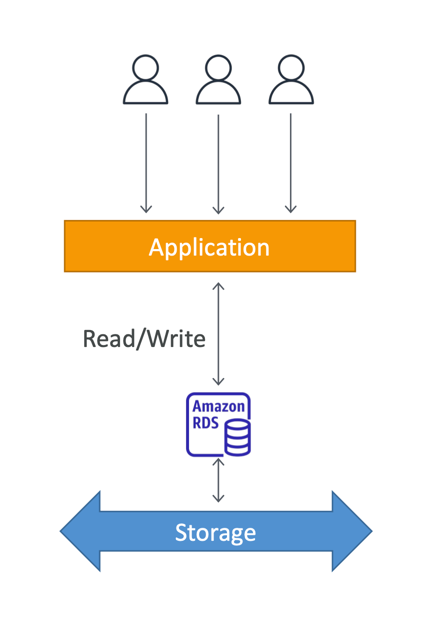

RDS Storage Auto Scaling -

• Helps you increase storage on your RDS DB instance dynamically
• When RDS detects you are ru
• Avoid manually scaling your database storage
• You have to set Maximum Storage Threshold (maximum limit for DB storage)
• Automatically modify storage if:
• Free storage is less than 10% of allocated storage
• Low-storage lasts at least 5 minutes
• 6 hours have passed since last modification
• Useful for applications with unpredictable workloads
• Supports all RDS database engines

RDS Deployment

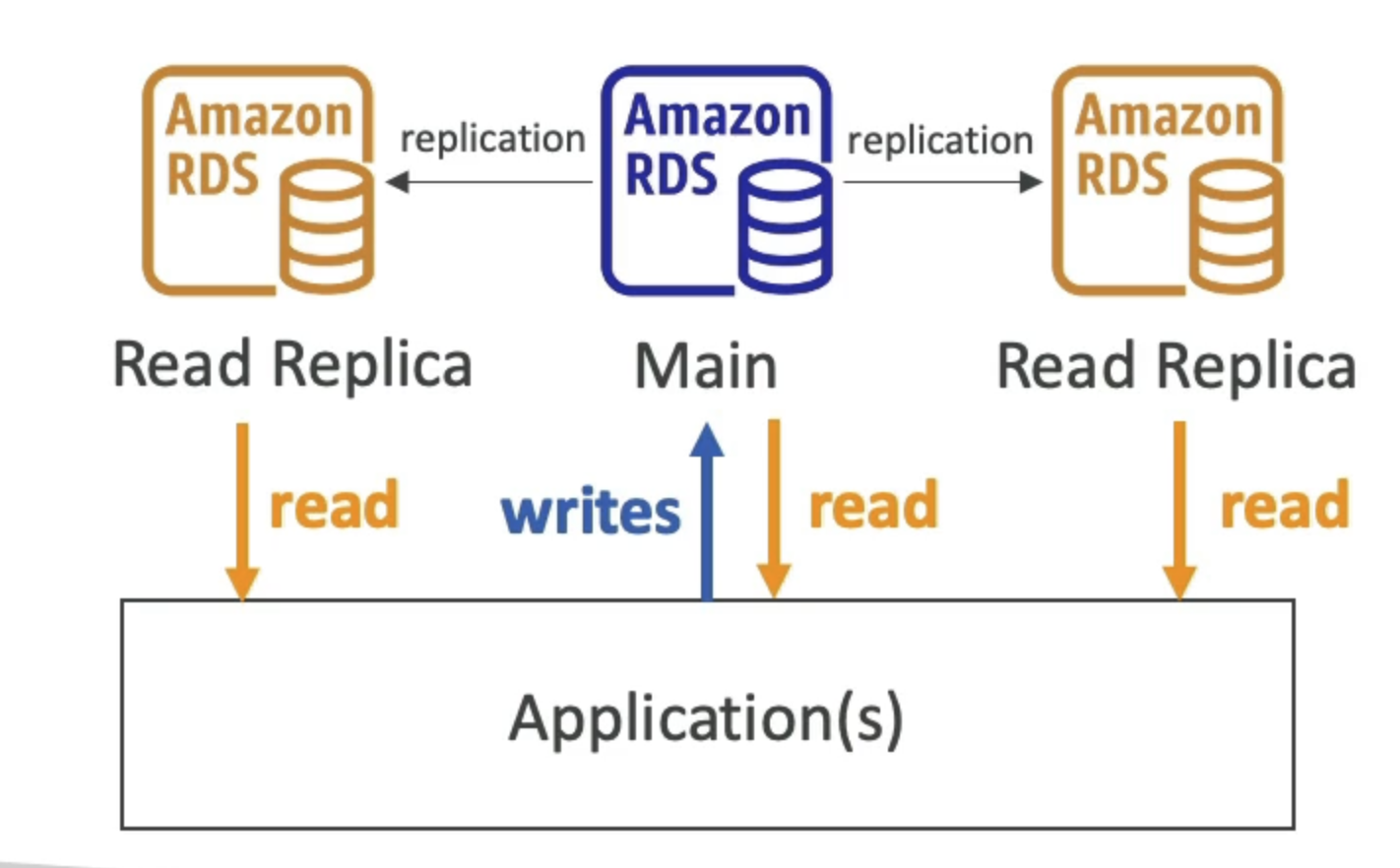

RDS Read Replicas

• Up to 15 Read Replicas
• Within AZ, Cross AZ or Cross Region
• Replication is ASYNC, so reads are eventually consistent

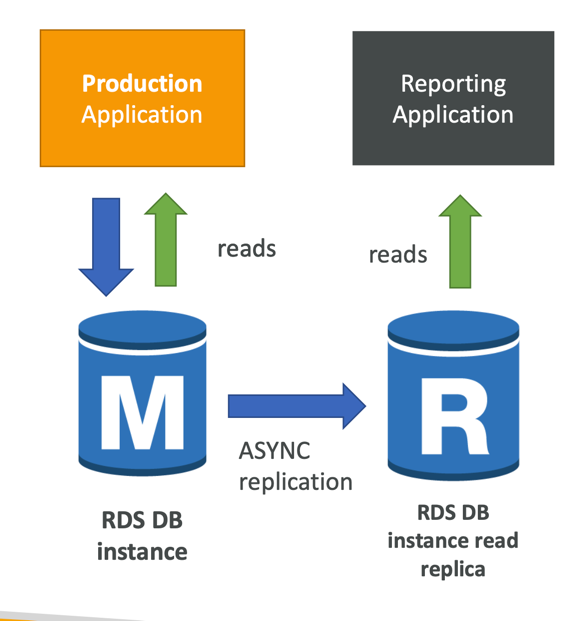

Use cases:

• You have a production database that is taking on normal load
• You want to run a reporting application to run some analytics
• You create a Read Replica to run the new workload there
• The production application is unaffected
• Read replicas are used for SELECT(=read) only kind of statements(not INSERT, UPDATE, DELETE)

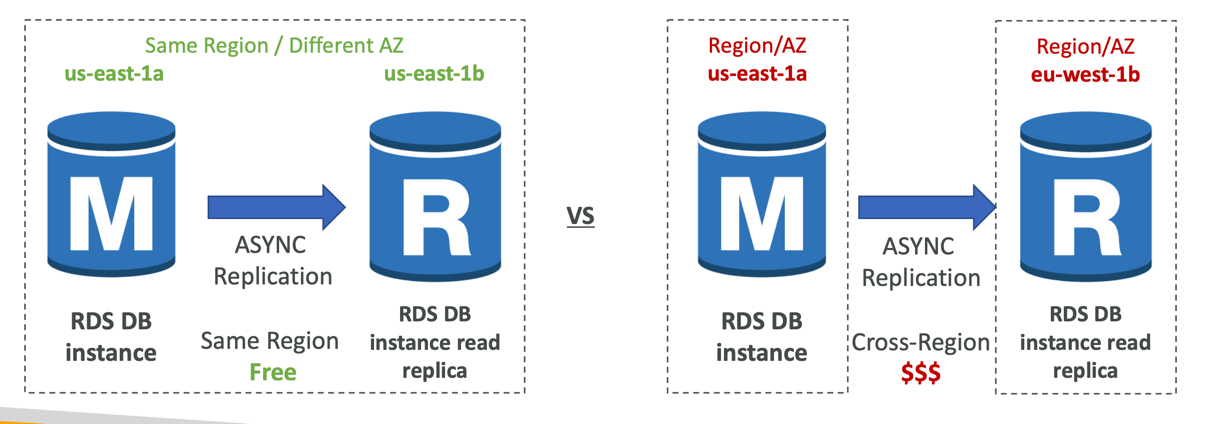

Network cost:

• In AWS there’s a network cost when data goes from one AZ to another
• For RDS Read Replicas within the same region, you don’t pay that fee

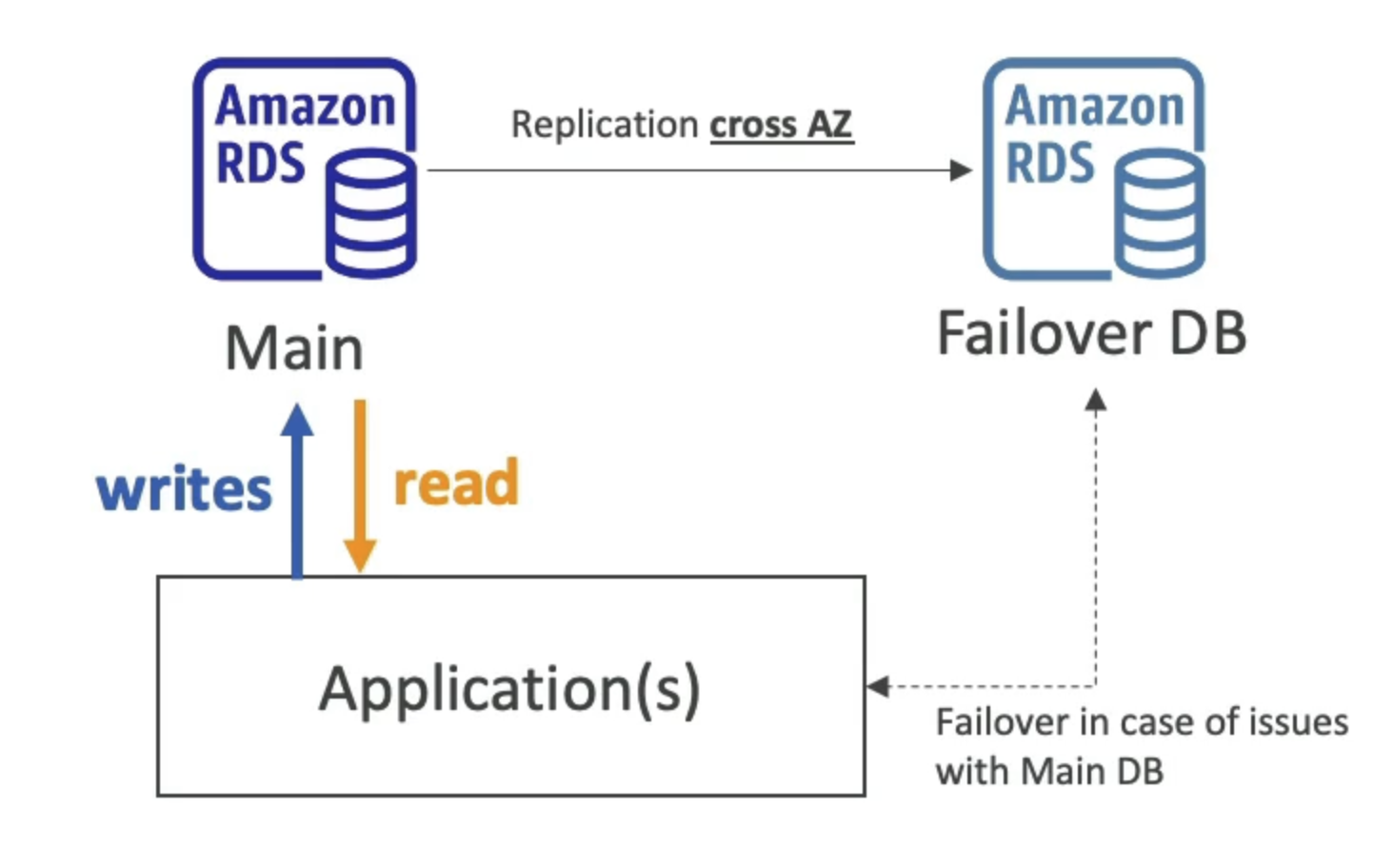

RDS Multi-AZ (Disaster Recovery)

• Fail over in case of AZ outage (high availability)
• Data is only read/written to the main database
• Can only have 1 other AZ as failover

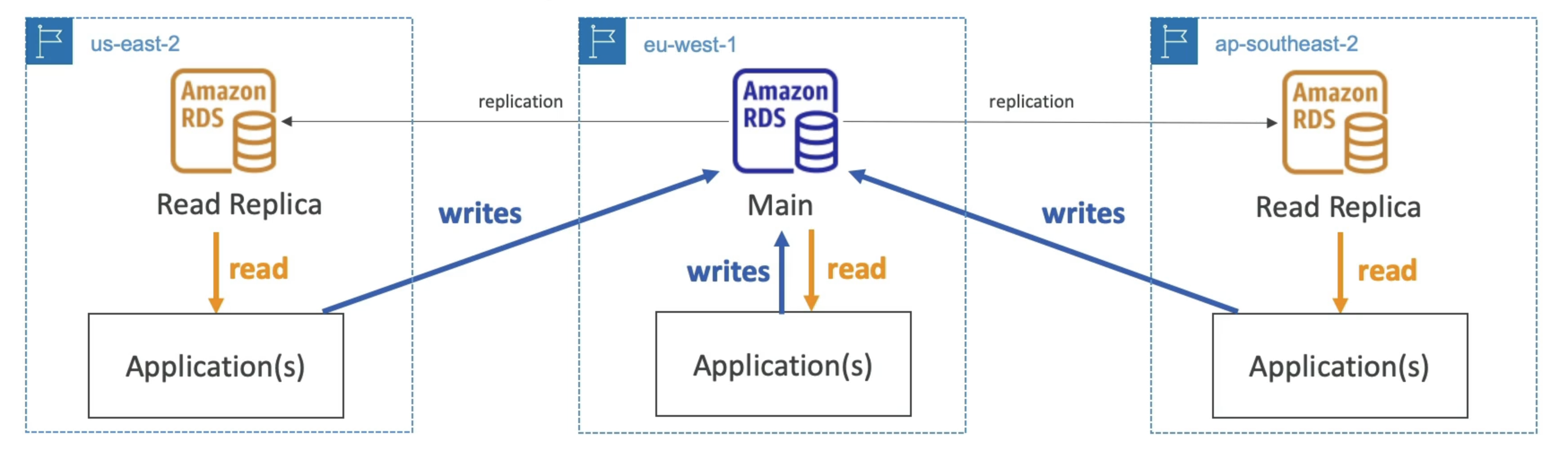

Multi-Region (Read Replicas)

• Disaster recovery in case of region issue
• Local performance for global reads
• Replication cost

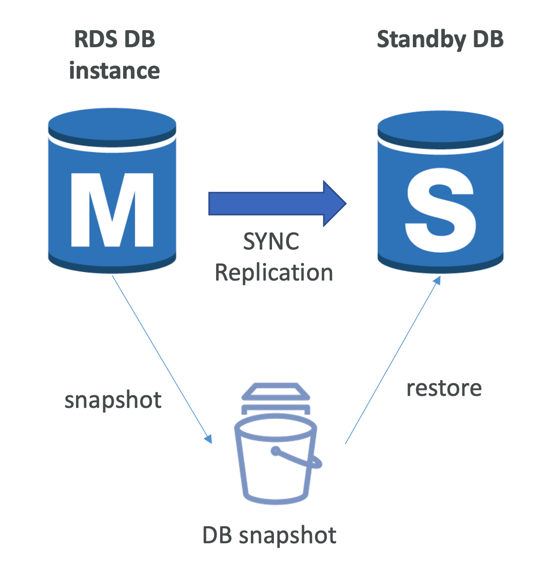

RDS From Single AZ to Multi-AZ

• Zero downtime operation (no need to stop the DB)
• Just click on “modify” for the database
• The following happens internally:
  • A snapshot is taken
  • A new DB is restored from the snapshot in a new AZ
  • Synchronization is established between the two databases

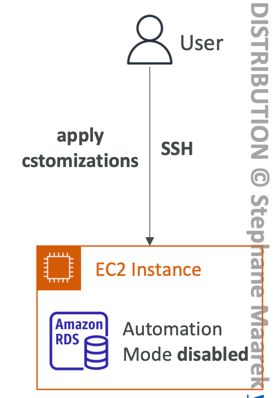

RDS Custom

• Managed Oracle and Microsoft SQL Server Database with OS and database customization
• RDS: Automates setup, operation, and scaling of database in AWS
• Custom: access to the underlying database and OS so you can
  • Configure settings
  • Install patches
  • Enable native features
  • Access the underlying EC2 Instance using SSH or SSM Session Manager
• De-activate Automation Mode to perform your customization, better to take a DB snapshot before
• RDS vs. RDS Custom
• RDS: entire database and the OS to be managed by AWS
• RDS Custom: full admin access to the underlying OS and the database

RDS Backup

• Automated backups:
  • Daily full backup of the database (during the backup window)
  • Transaction logs are backed-up by RDS every 5 minutes
  • => ability to restore to any point in time (from oldest backup to 5 minutes ago)
  • 1 to 35 days of retention, set 0 to disable automated backups
• Manual DB Snapshots
  • Manually triggered by the user
  • Retention of backup for as long as you want
• Trick: in a stopped RDS database, you will still pay for storage. If you plan on stopping it for a long time, you should snapshot & restore instead

RDS and Aurora Restore Options

• Restoring a RDS / Aurora backup or a snapshot creates a new database
• Restoring MySQL RDS database from S3
  • Create a backup of your on-premises database
  • Store it on Amazon S3 (object storage)
  • Restore the backup file onto a new RDS instance running MySQL
• Restoring MySQL Aurora cluster from S3
  • Create a backup of your on-premises database using Percona XtraBackup
  • Store the backup file on Amazon S3
  • Restore the backup file onto a new Aurora cluster running MySQL

RDS and Aurora Security

• At-rest encryption:
  • Database master & replicas encryption using AWS KMS – must be defined as launch time
  • If the master is not encrypted, the read replicas cannot be encrypted
  • To encrypt an un-encrypted database, go through a DB snapshot & restore as encrypted
• In-flight encryption: TLS-ready by default, use the AWS TLS root certificates client-side
• IAM Authentication: IAM roles to connect to your database (instead of username/pw)
• Security Groups: Control Network access to your RDS / Aurora DB
• No SSH available except on RDS Custom
• Audit Logs can be enabled and sent to CloudWatch Logs for longer retention

RDS proxy

• Fully managed database proxy for RDS
• Allows apps to pool and share DB connections established with the database
• Improving database efficiency by reducing the stress on database resources (e.g., CPU, RAM) and minimize open connections (and timeouts)
• Serverless, autoscaling, highly available (multi-AZ)
• Reduced RDS & Aurora failover time by up 66%
• Supports RDS (MySQL, PostgreSQL, MariaDB, MS SQL Server) and Aurora (MySQL, PostgreSQL)
• No code changes required for most apps
• Enforce IAM Authentication for DB, and securely store credentials in AWS Secrets Manager
• RDS Proxy is never publicly accessible (must be access from VPC)

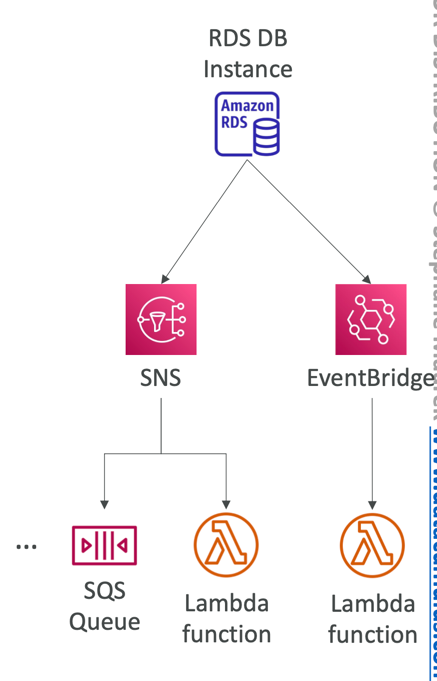

RDS Event Notifications

• Notifications that tells information about the DB instance itself (created, stopped, start, …)
• You don’t have any information about the data itself
• Subscribe to the following event categories: DB instance, DB snapshot, DB Parameter Group, DB Security Group, RDS Proxy, Custom Engine Version
• Near real-time events (up to 5 minutes)
• Send notifications to SNS or subscribe to events using EventBridge
